SS007

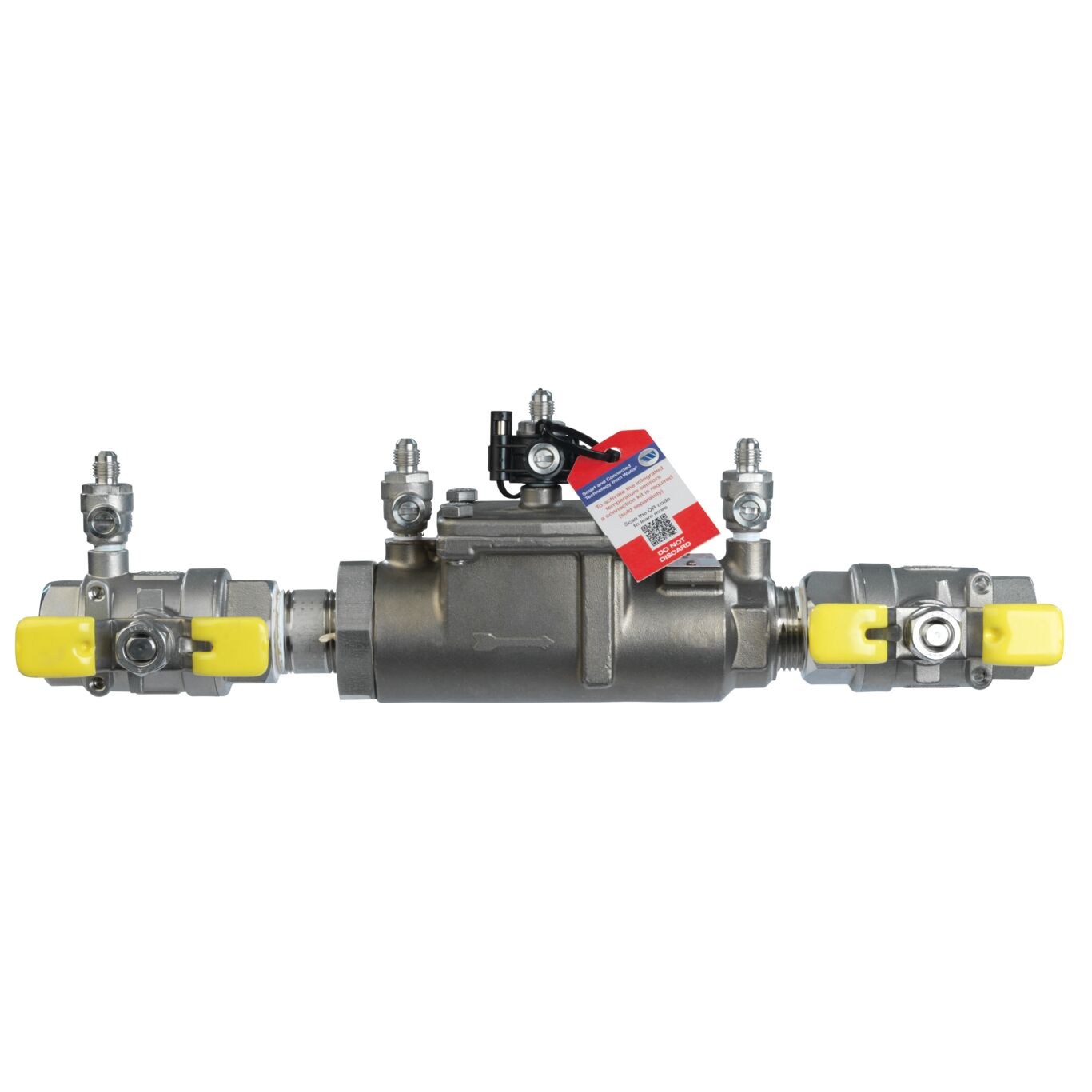

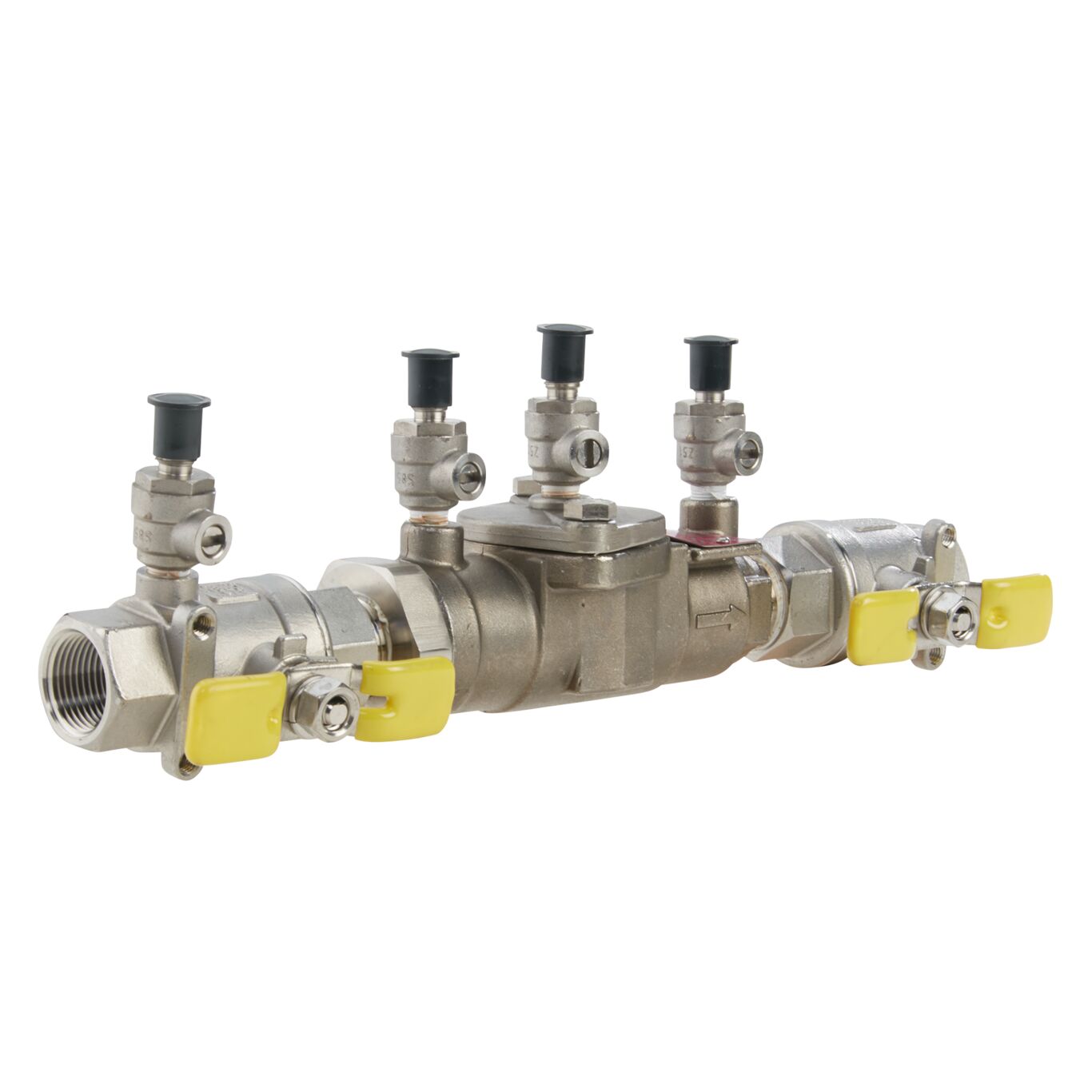

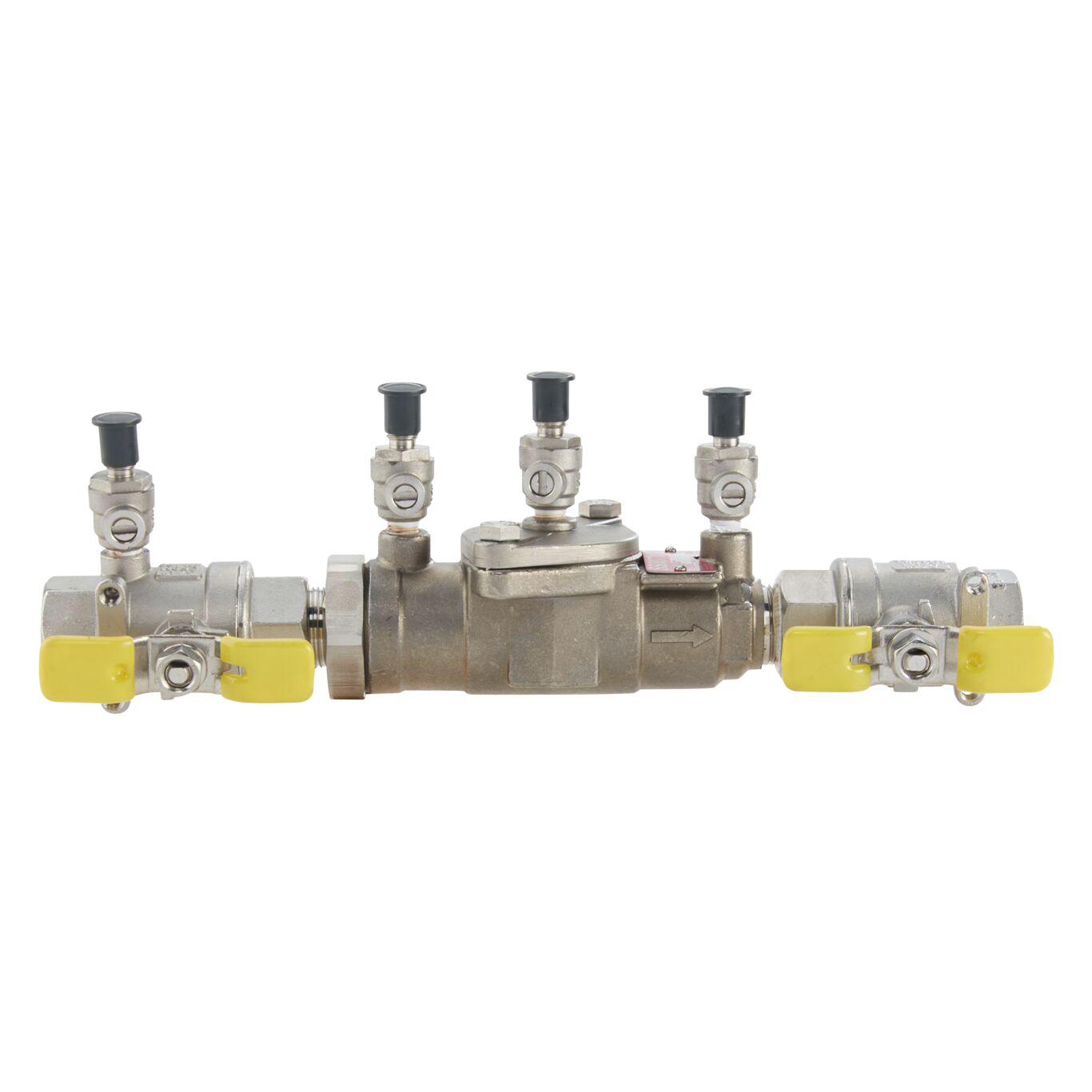

Stainless Steel Double Check Valve Assembly Backflow Preventers with Freeze Sensor
Series SS007 double check valve assembly backflow preventers include a freeze sensor for use with SentryPlus Alert® technology to signal facility personnel when temperature nears and reaches the freezing point. Freeze alerts feature available with add-on connection kit for Wi-Fi networks, building management systems (BMS), and irrigation management systems (IMS).
Series SS007 stainless steel double check valve assemblies provide protection to the potable water supply at non-health hazard cross-connections. Ideal in applications where the downstream liquid forms a composition that would damage bronze material or if eliminating trace elements of lead and copper is desired. Suitable for low-hazard installations found in industrial or chemical plants, pulp and paper industries, hospitals, and corrosive atmospheres. Maximum Working Pressure: 175 psi (12.06 bar).
To learn more visit: https://www.watts.com/freeze-detection
Features
- Available freeze sensor connection kit to activate a monitoring system that trigger alerts for low and freezing temperatures
- Corrosion-resistant stainless steel
- Bolted-on, top-entry, single access cover for easier maintenance
- Top-mounted, vandal-resistant test cocks
- Test cocks include dust covers to protect threads
- Freeze alerts feature available with add-on connection kit for Wi-Fi networks, building management systems (BMS), and irrigation management systems (IMS)
Literature
-
- Flyer - Freeze Detection for Backflow Protection
- Installation Instructions - 007, LF007 Sizes 1/2 - 2 IN
- Installation Instructions - Freeze Sensor Connection Kit - Watts and FEBCO
- Price List - Backflow Prevention Repair Kits & Service Parts
- Specification Sheet - Freeze Sensor Connection Kit
- Specification Sheet - Freeze Sensor Connection Kit (French)
- Specification Sheet - Freeze Sensor Connection Kit (Spanish)
- Specification Sheet - SS007
- Specification Sheet - SS007 (French)
- Specification Sheet - SS007 (Spanish)
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific SS007
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
