SD-3
Dual Check Valve Backflow Preventers with Atmospheric Port & Strainer for Carbonated Beverage Machines

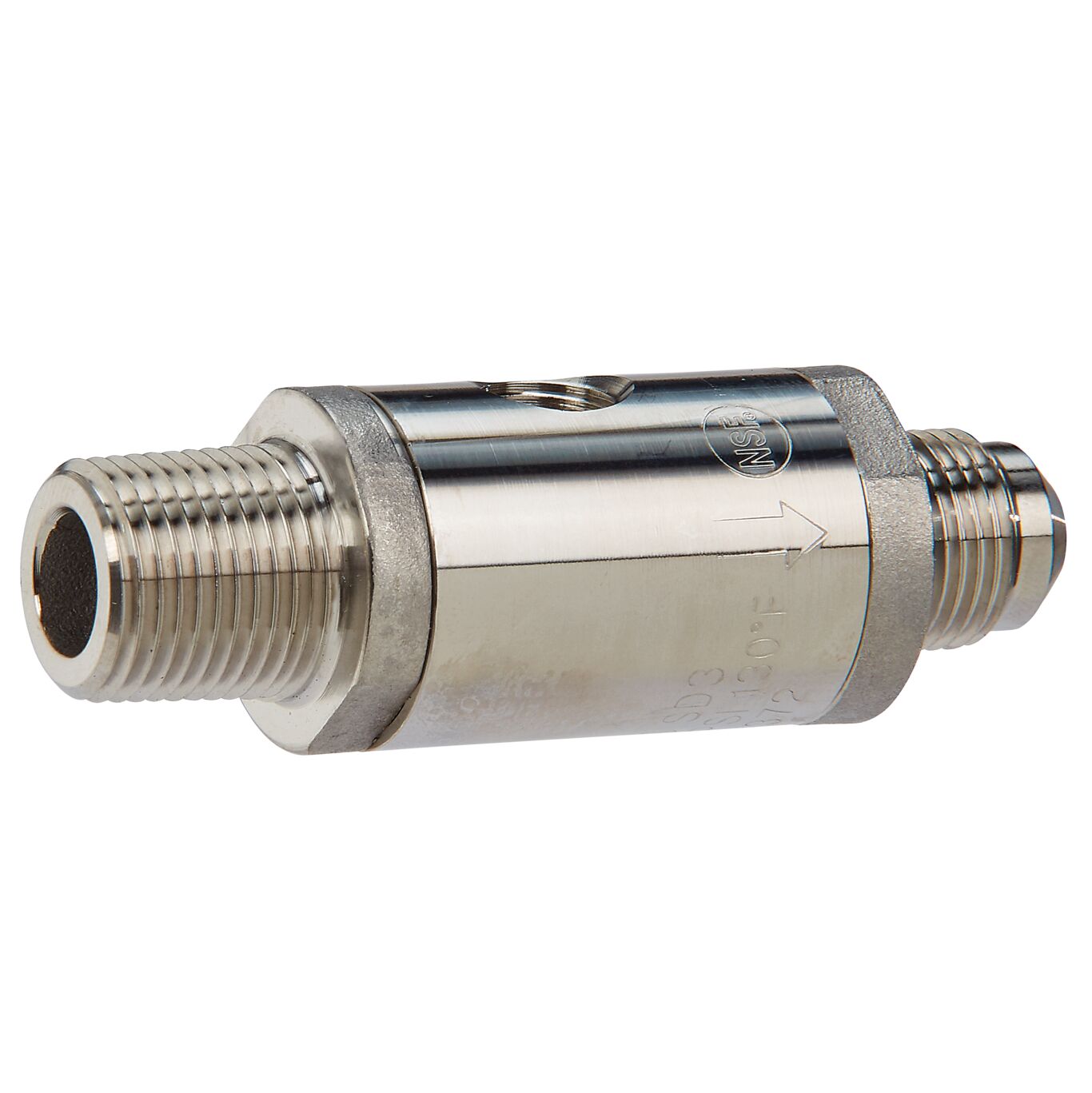

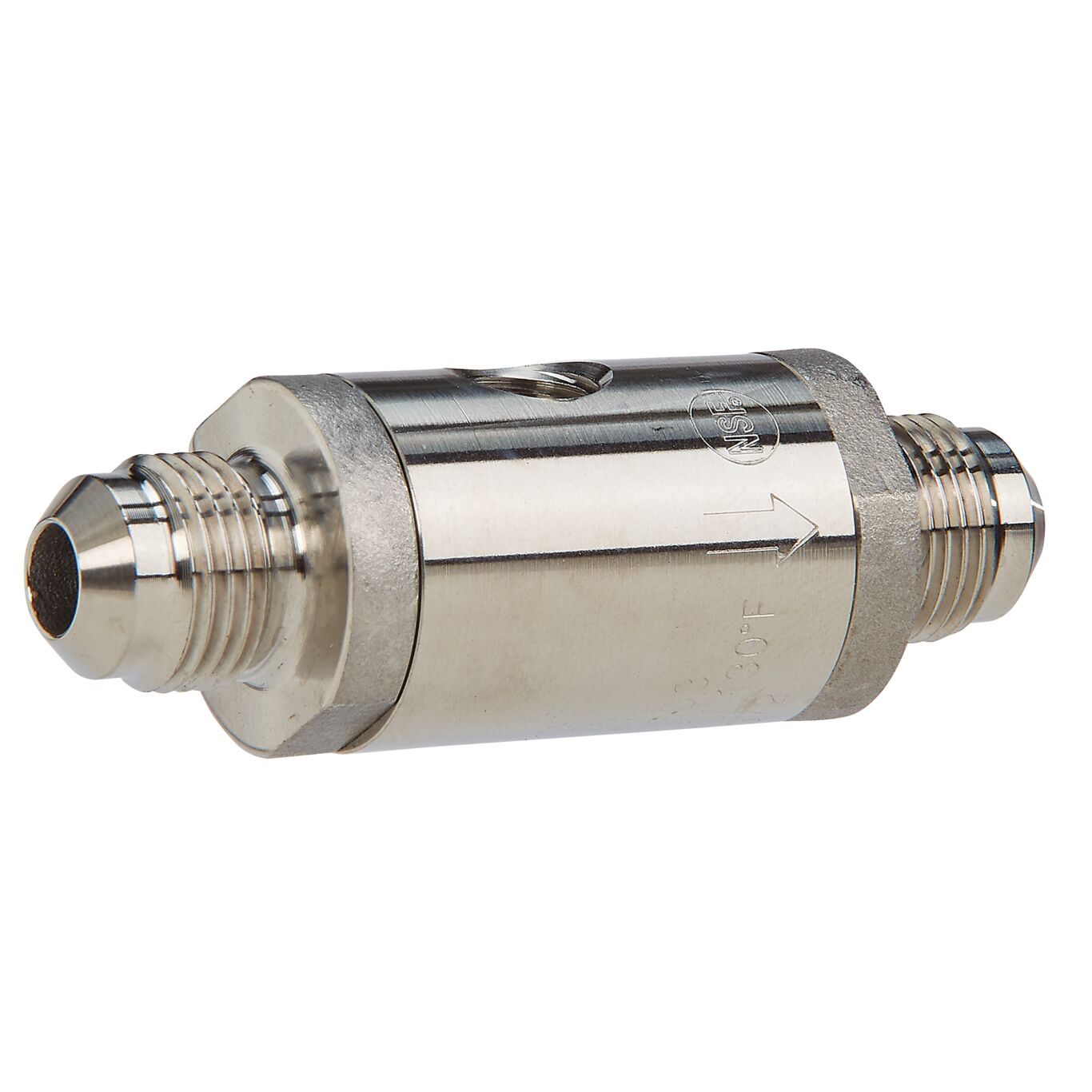

Series SD-3 Dual Check Valves with Atmospheric Port & Strainer for Carbonated Beverage Machines prevent the reverse flow of polluted water, such as carbon dioxide gas and carbonated water, from entering into the potable water supply due to backpressure backflow. It consists of stainless steel body construction with internal rubber components and is designed for continuous or intermittent pressure applications. Series SD-3 has an atmospheric port that provides visual indication of failure of the second check and a wye pattern strainer. Series SD-3 is available in a variety of models and is ideal for use on post-mix carbonated beverage equipment and dispensing equipment for tea and coffee. Maximum Working Pressure: 150psi (10 bar).
Features
- Corrosion-resistant stainless steel
- Streamlined body design minimizes pressure loss and cavitation
- Atmospheric port provides visual indication in case of failure of second check

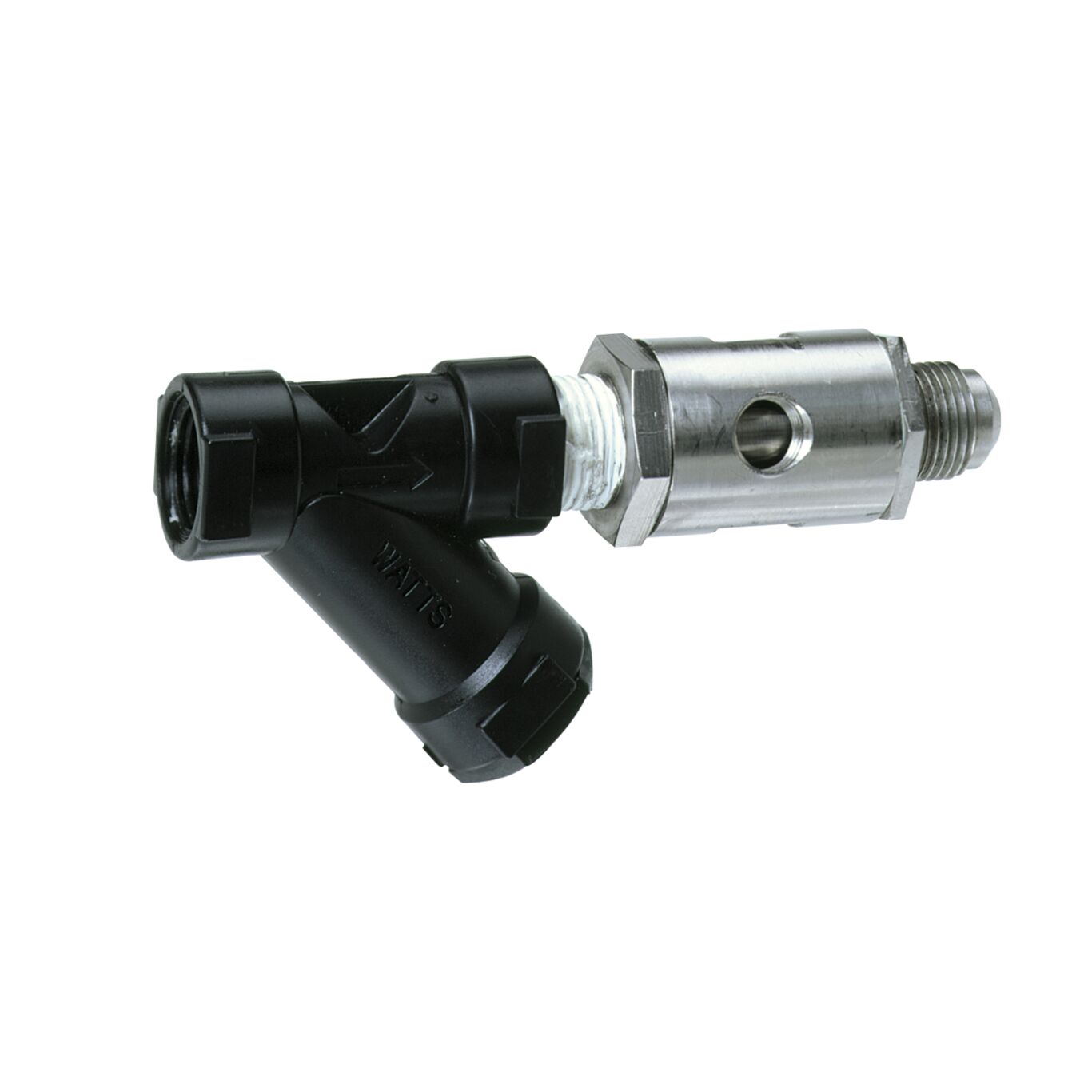

- Wye pattern strainer for water supply installations
Literature
Select a Model

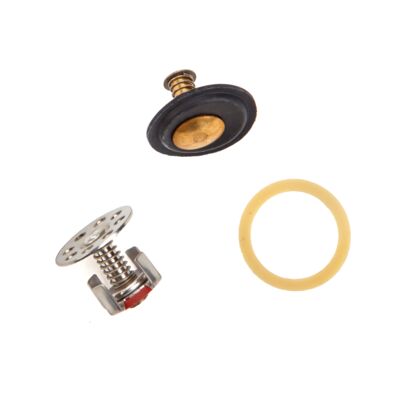

Select options below to identify the UPC, Order Code, and Repair Kit for a specific SD-3
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
