STR-CELL-Class 150
×
![]()
Part of the SentryPlus Alert Technology-Strainers Series
Ordering Code: M6763131
UPC: 643925582413
Lead Free: Not In Scope

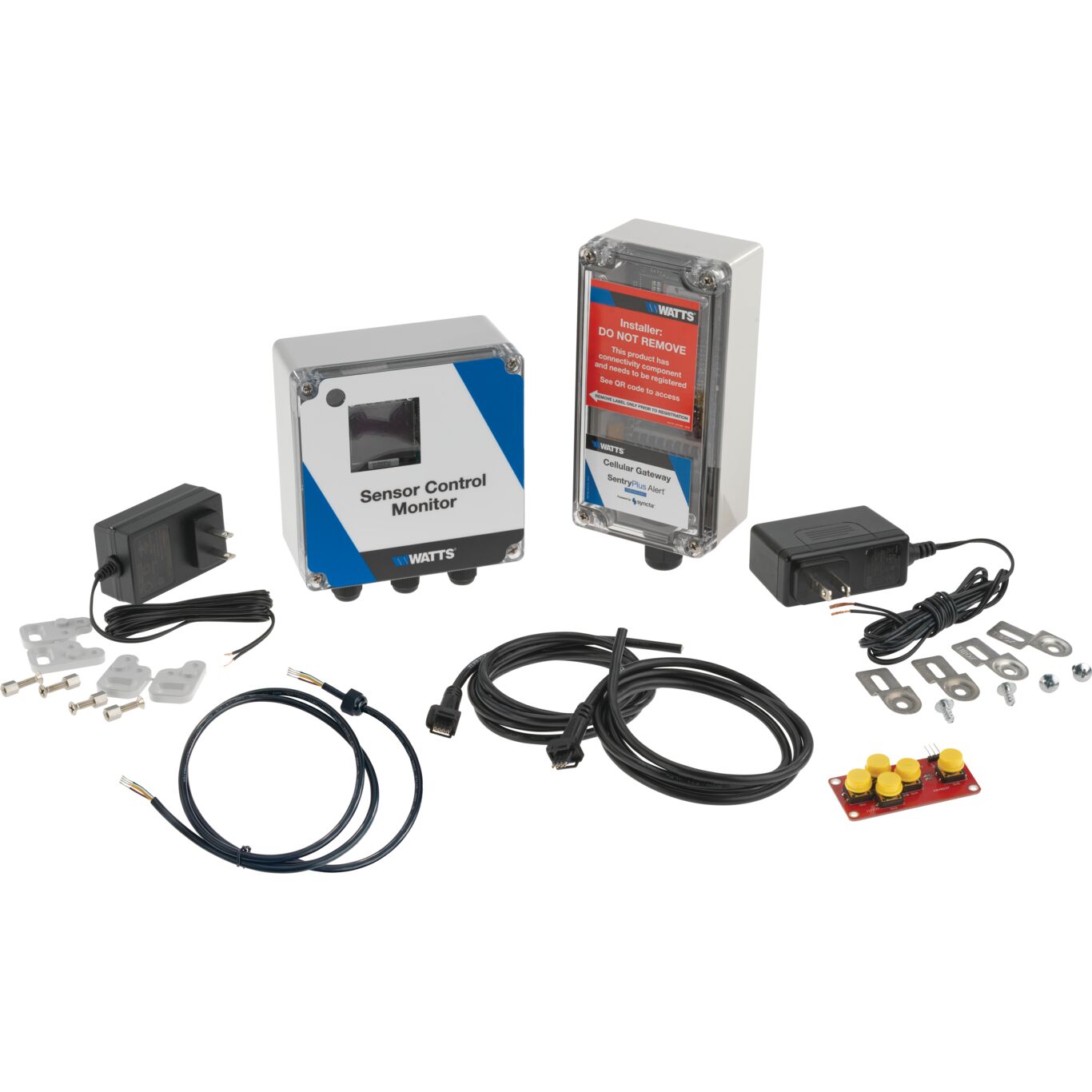

Cellular Monitoring Connection Kit for Class 125/150 Smart Strainers, Sensor Control Monitor with Cellular Gateway, Data Cable, 2 Sensor Cables, and 2 Power Adapters
This cellular monitoring connection kit is a turnkey solution for transmitting strainer pressure measurements via cellular gateway. It includes a sensor control monitor with cellular gateway, two sensor cables, data cable, and two power adapters. This kit should be purchased to enable monitoring and alerts for strainer models 758 SM, 791 SM, 792 SM, 691 SM, and 692 SM.
Features
- Includes a sensor control monitor with cellular gateway, 2 sensor cables, and 2 power adapters
- Cellular communication option for when no BMS is present
- A solution for monitoring pressure drop across the strainer screen
- Alerts triggered when pressure drop exceeds a preconfigured threshold
- IP66 rated enclosure
| Specifications | |
|---|---|
| Communication Type | Cellular Gateway |
| Kit Type | Activation Kit |
| Lead Free | Not In Scope |
| Product Group | DUPLEX STRAINER - IMPORT |
