076
×
![]()
Part of the Control Accessories Series
Ordering Code: 076
UPC: 779655007602

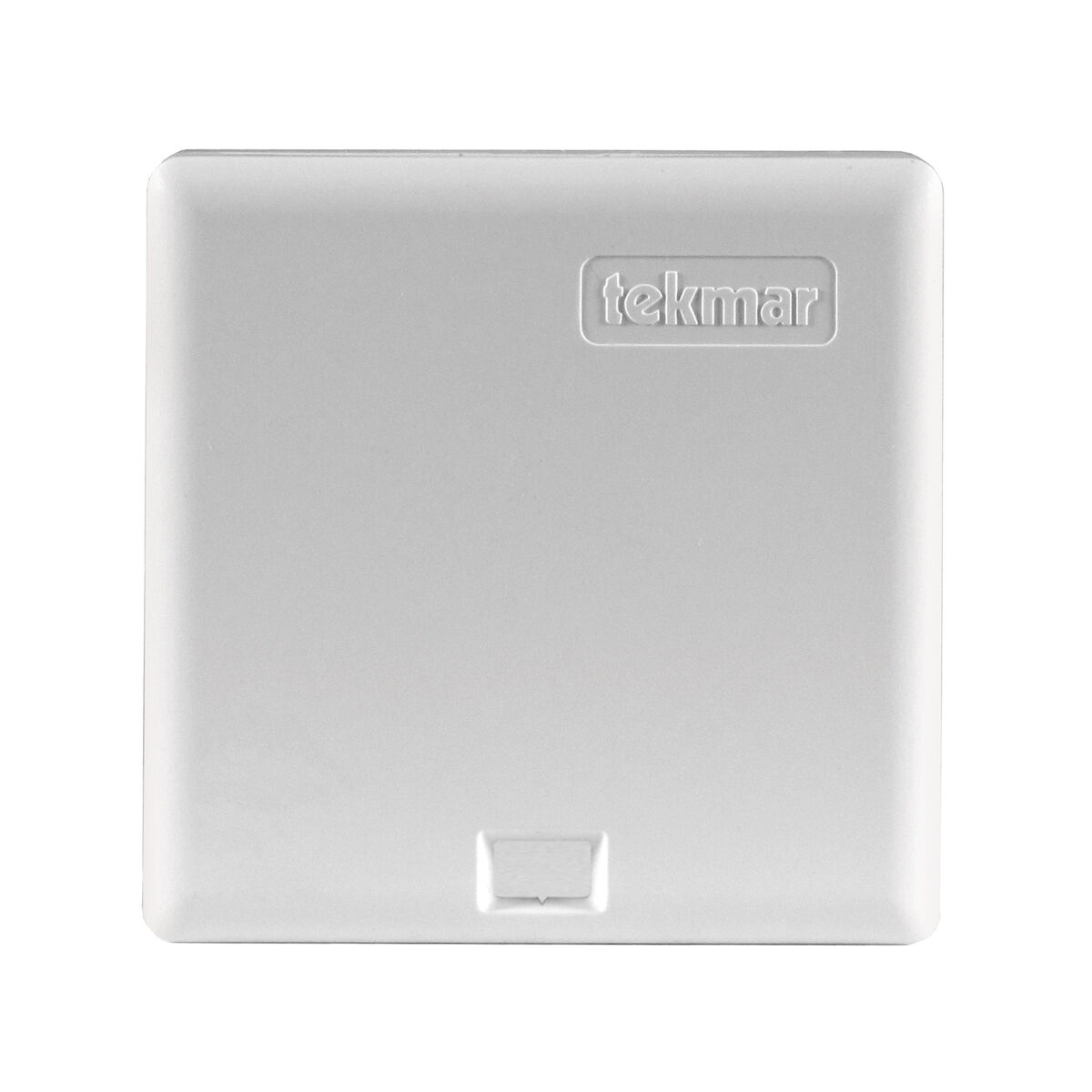

Indoor Sensor
The Indoor Sensor 076 is designed to provide remote temperature sensing when connected to a compatible thermostat, or control. It can be used in installations that use a boiler control but want Indoor Temperature Feedback for increased efficiency and comfort. This product can be connected to a control to provide temperature sensing at any location where it is installed. An optional Adaptor Plate 007 is available which allows the indoor sensor to be installed onto a single gang electrical box.
Features
- Compatible with tekmar thermostats that support auxiliary sensing
- To be installed onto a single gang electrical box
- 10K thermistor
- Designed to provide remote temperature sensing
| Specifications | |
|---|---|
| Agency Approvals | CSA C US |
| Dimensions | 2 7/8 IN H x 2 7/8 IN W x 13/16 IN D (73 x 73 x 21 MM) |
| Enclosure Material | White PVC plastic |
| Enclosure NEMA Rating | NEMA 1 |
| Operating Range | Negative 60 to 140 degrees F (negative 51 to 60 degrees C) |
| Sensor | NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892 |
