089
×
![]()
Part of the Control Accessories Series
Ordering Code: 089
UPC: 779655008906

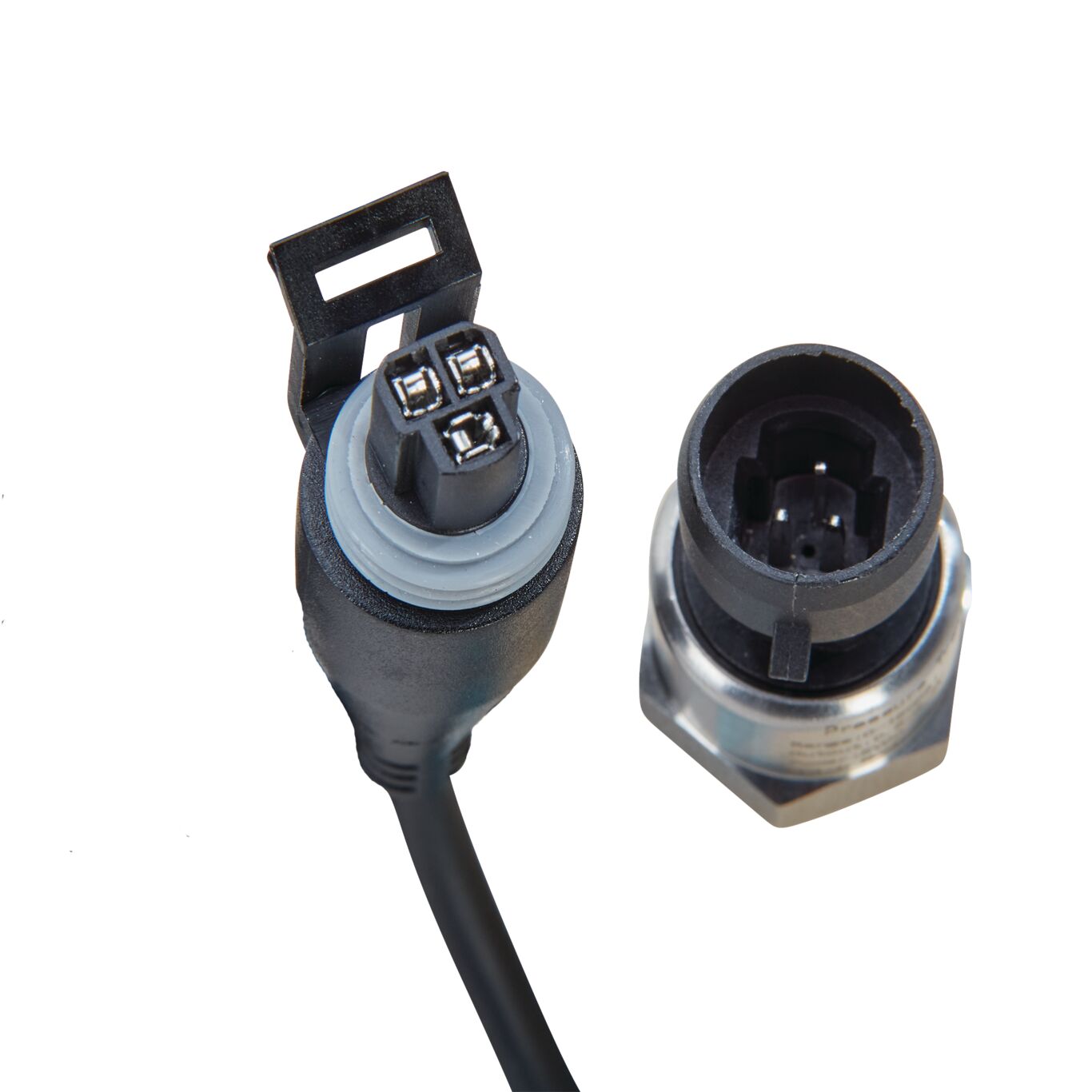

Pressure Sensor, 15 psi, 103 kPa, 10 FT Cable
The Pressure Sensor 089 provides a ratiometric signal to a controller to measure the pressure of a hydronic system between 0 to 15 psi (0 to 103 kPa). The sensor bulb is designed to install into a tee using 1/8-27 inch NPT threads and includes a 10 foot (3 m) long cable.
Features
- 15 psi or 103 kPa
- 10 FT (3 m) cable
- Ratiometric signal
- 1/8-27 inch NPT threads
- 304 Stainless steel sensor bulb
| Specifications | |
|---|---|
| Agency Approvals | CSA C US |
| Dimensions | 0.82" OD x 2.3" (22.0 OD x 58.5 mm) |
| Operating Range | -40 to 257 degrees F (-40 to 125 degrees C) |
| Sensor | 5 VDC Ratiometric |
