Part of the Control Accessories Series

Ordering Code: 486

UPC: 779655048605

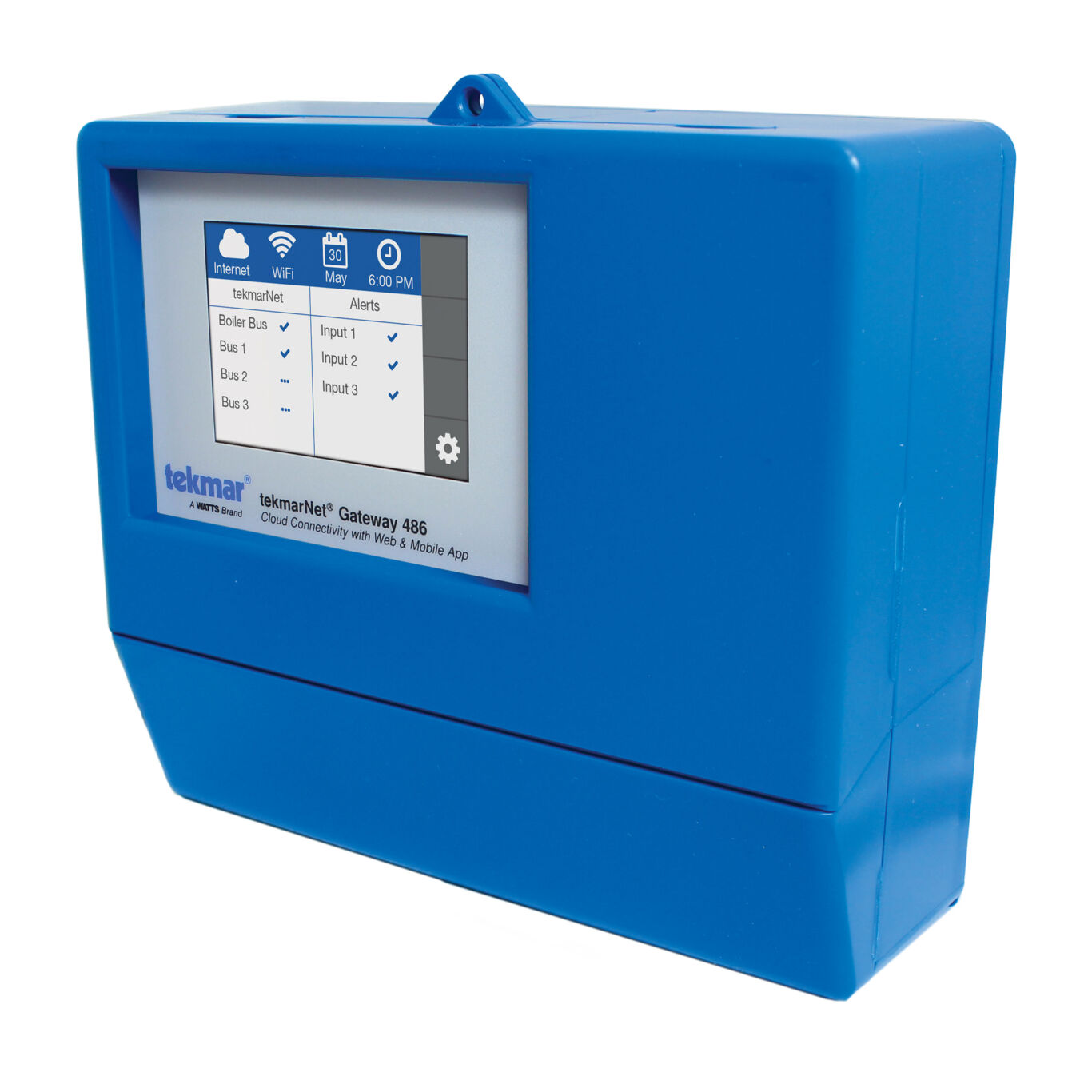

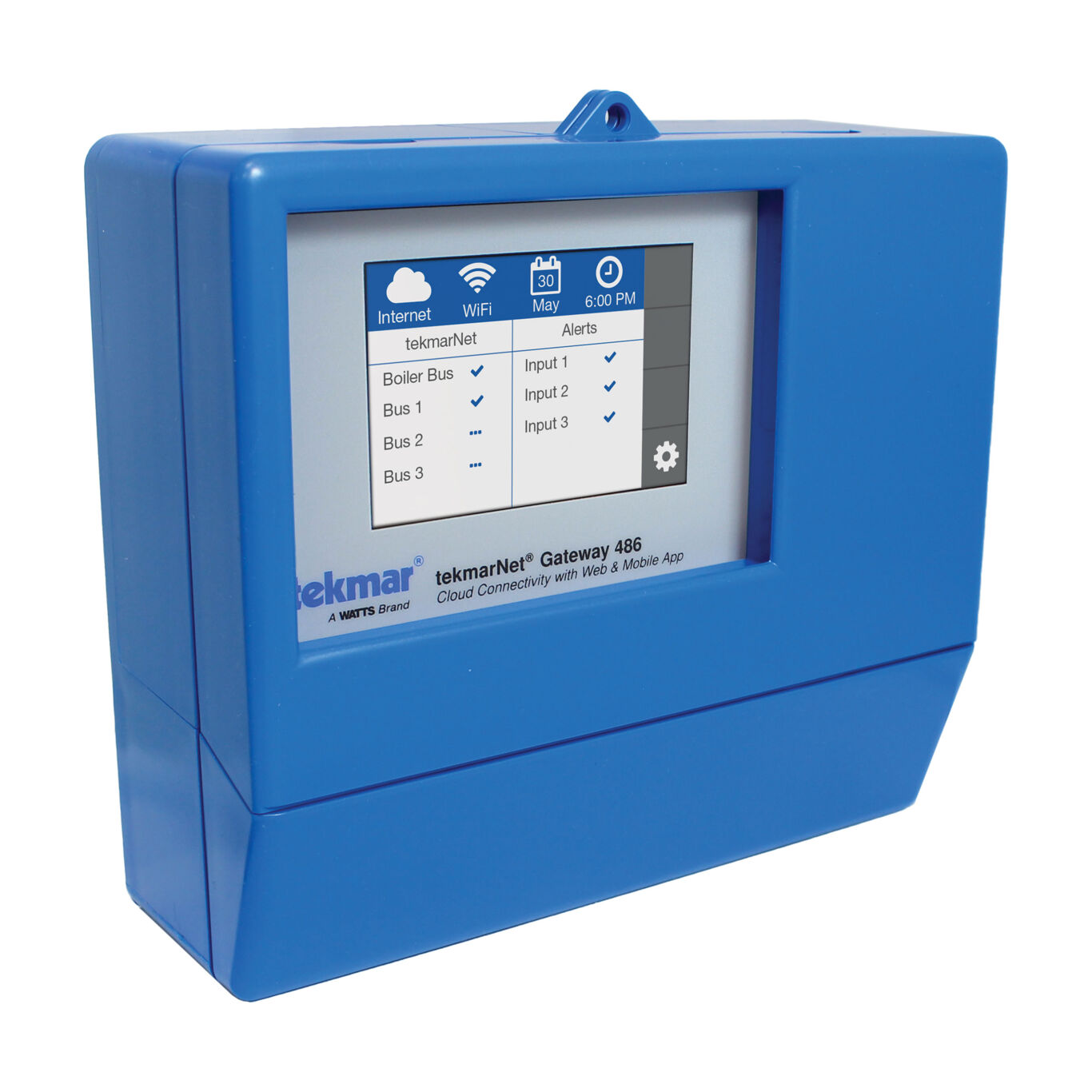

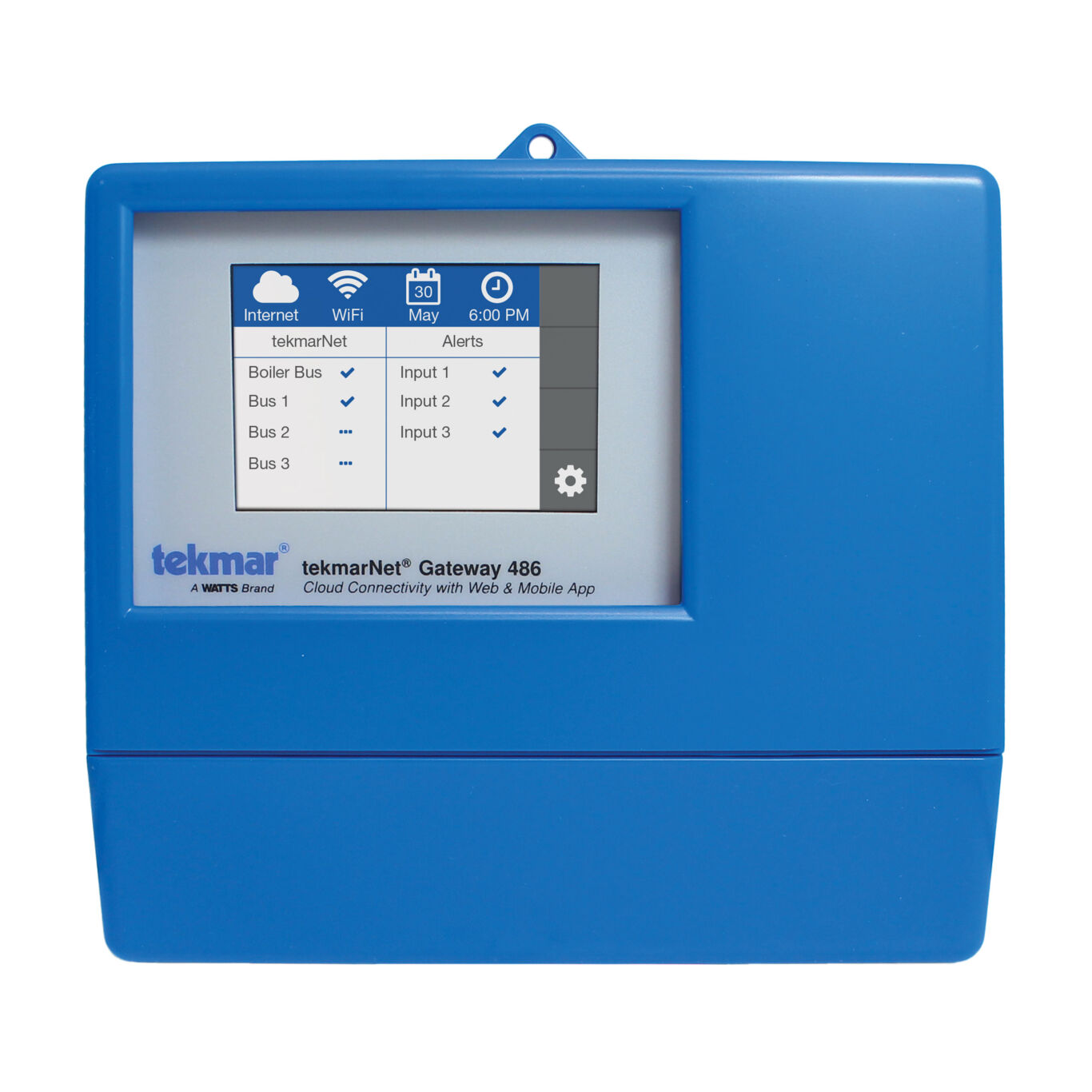

tekmarNet Gateway, Cloud Connectivity with Web and Mobile App

Quick links:

Control Selector

tekmar Home

tekmar Gateway App

The tekmarNet (R) Gateway allows remote access to a tekmarNet HVAC system. Users can view and change settings for each thermostat, including: temperature, heat/cool/auto, fan operation, relative humidity, schedules, and the away scene. In addition, the boiler system temperatures, firing rate, run times, and pump status can be viewed. All system data can be graphed on a chart or exported as a CSV file. Users are informed of errors and warnings through email or text notifications. The 486 includes three alert inputs that can be used to monitor auxiliary equipment.

Features

  • Remotely control up to 96 thermostats, and the hot water heating system
  • Includes visualizations with building location map, floor plans and mechanical schematic
  • Graph and export up to a year of logged system data
  • Supports multiple user accounts
  • Text and email error notifications and history log
  • Includes three external alert demands for boiler room equipment monitoring
  • Mobile app for iOS and Android and compatible with web browsers
  • WiFi or Ethernet connection to Internet
Specifications
Agency Approvals Class B: ICES & FCC Part 15
Ambient Conditions Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH maximum 90 percent, non-condensing
Control Type Microprocessor-based, this is not a safety (limit) device
Dimensions 6-5/8" H x 7-9/16" W x 2-13/16" D (170 x 193 x 72 mm)
Enclosure Material Blue PVC plastic
Enclosure NEMA Rating NEMA 1
Power Supply 5 V (dc) regulated, 1 A, Class 2, FCC certified
