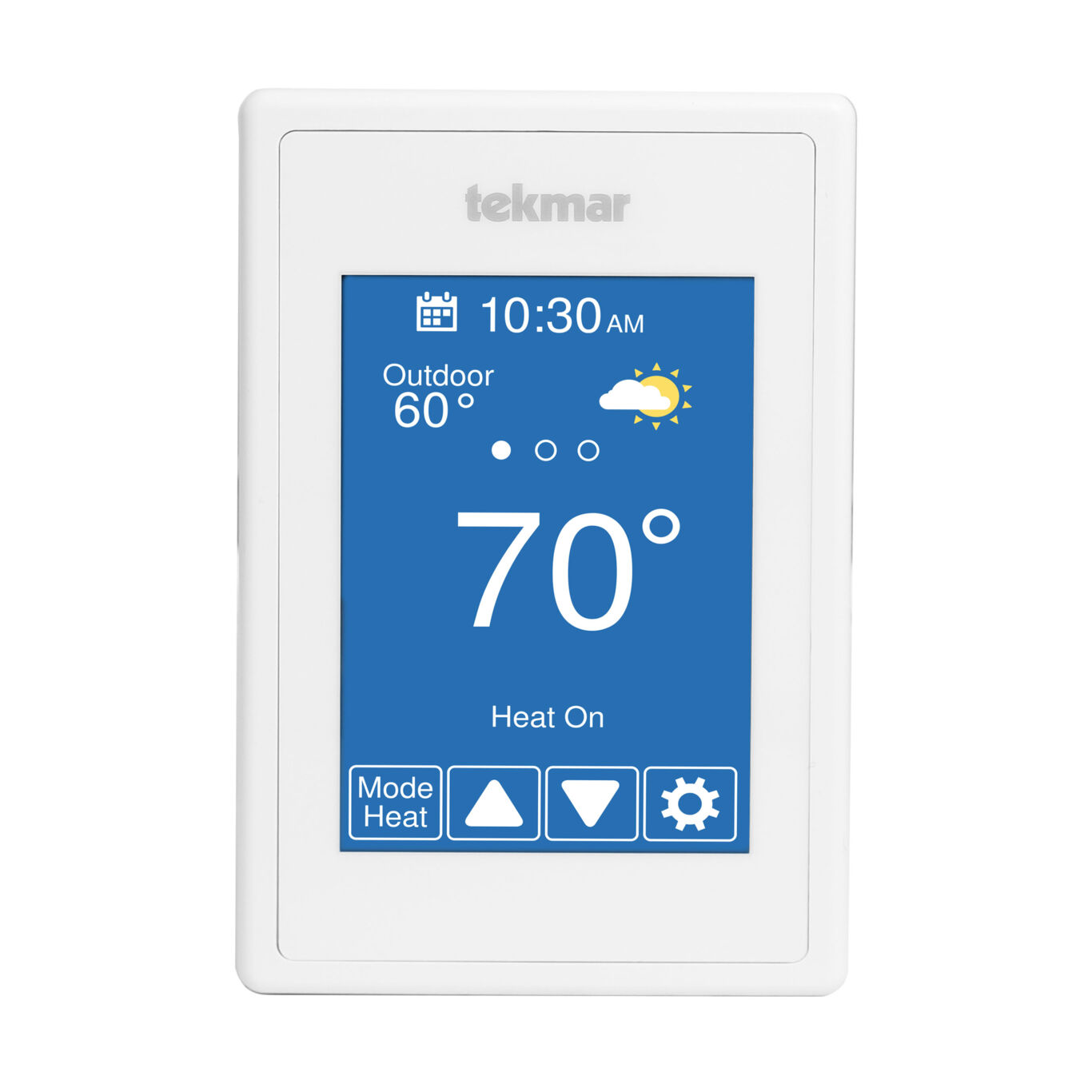

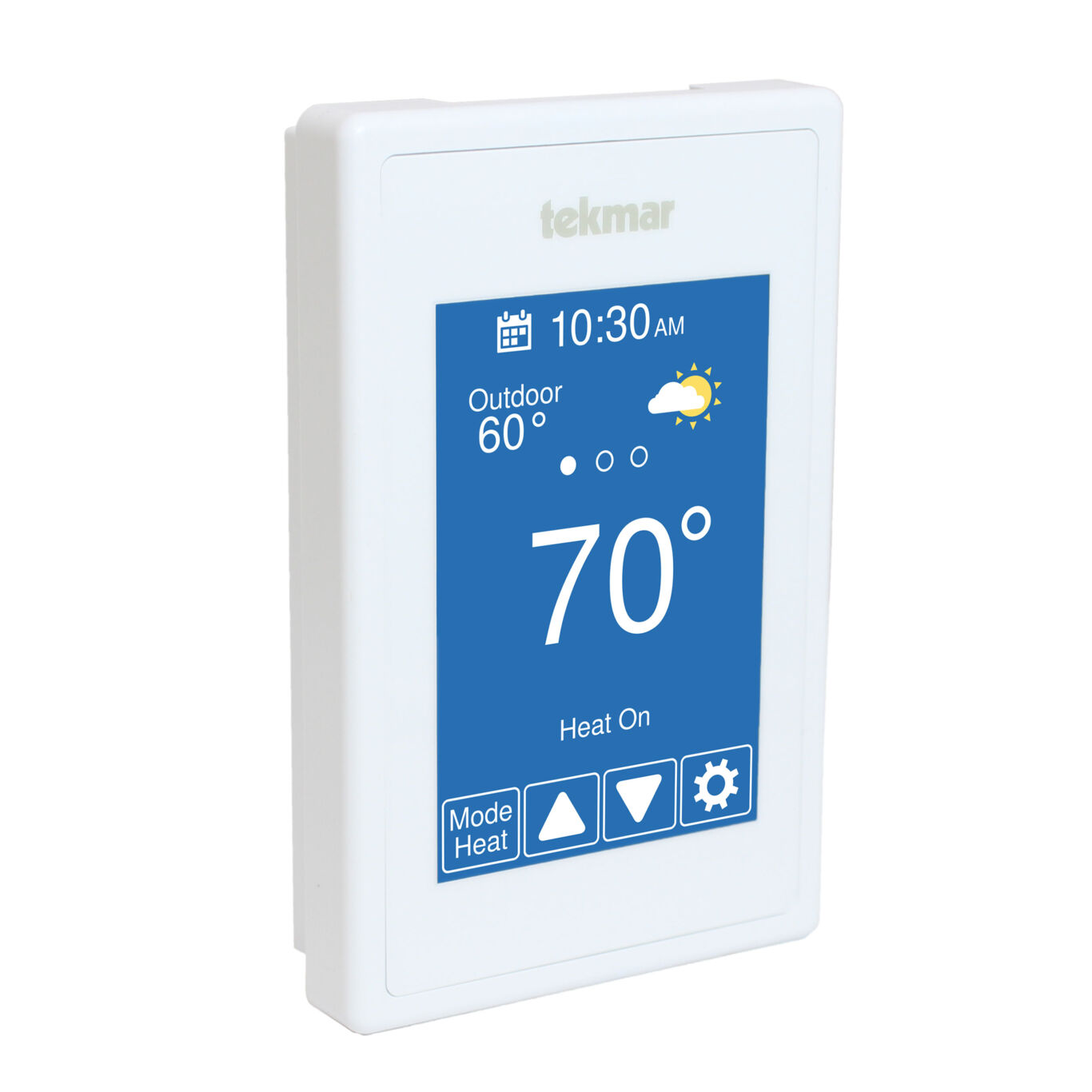

563

Product Image - 563
Product Image - 563
Product Image - 563
×

Part of the Thermostats Series

Ordering Code: 563

UPC: 779655056303

WiFi Thermostat, Conventional 2H, 2C or Heat Pump 4H, 2C



Quick Product Search


Quick links:

Control Selector

tekmar Home




The WiFi Thermostat 563 operates either a multi-stage conventional or heat pump HVAC system, a fan, and up to two accessories, including a humidifier, dehumidifier and ventilator. When connected to the Internet, the Watts(R) Home mobile allows the thermostat to be controlled remotely. A 7-day, 4-event programmable schedule is available and the early start feature automatically learns to heat up the room by the scheduled time. An Away mode is quickly and easily accessed to provide energy savings when the space is unoccupied. An optional floor sensor can be installed to enhance comfort and protect floor coverings when operating radiant floor systems.

Features

  • Mobile and web app for remote control, away energy savings mode
  • Optional remote floor, room, outdoor and relative humidity sensors, local outdoor temperature and weather
  • Email error and warning notifications, automatic time clock
  • 7 day programmable schedule, early start
  • Energy monitoring, multiple background colors
  • Humidifier window frost protection, conventional systems: 2-stage heating, 2-stage cooling, fan and 2 accessories
  • Heat pump systems: 4-stage heating, 2-stage cooling, fan, reversing valve and 1 accessory
  • Supports dual fuel systems
  • Accessory options: humidifier, dehumidifier, HRV/ERV ventilator, water-source heat pump loop valve
Specifications
Agency Approvals Meets Class B: ICES & FCC Part 15
Ambient Conditions Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 90 percent non-condensing
Control Type Microprocessor control, this is not a safety (limit) control
Dimensions 4-5/8" H x 3" W x 15/16" D (118 x 76 x 24 mm)
Display 3.5" color touchscreen
Enclosure Material White PVC plastic
Enclosure NEMA Rating NEMA 1
Environmental Notice Do not use in presence of ammonia (animal barns).
Power Supply 15 to 30 V (ac/dc), 2 VA, Class 2
Relay 30 V (ac/dc), 2 A, Class 2 circuits
